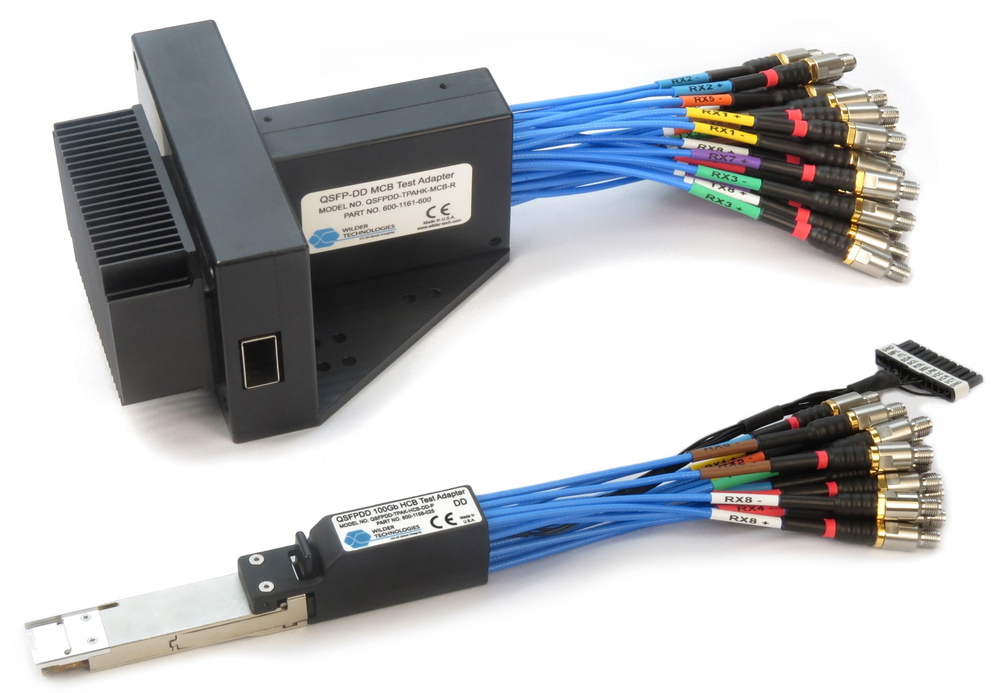

QSFPDD Test Adapters HCB & MCB
Capabilities
- Supports 400G PAM4
- Two-insertion host testing
- User-selectable host configuration for Rx, Tx, Legacy, and DD testing
- Adheres to 802.3bs/cd and OIF-CEI 4.0
General Description
With ever-growing performance, accuracy and precision required by 400G PAM4 solu-tions, Wilder has been able to design ro-bust plug and receptacle fixtures to sup-port QSFP-DD compliance testing.
HCB Adapter Kit: 640-0890-000
MCB Adapter Kit: 640-0892-000
Mated Insertion Loss (no de-embedding)

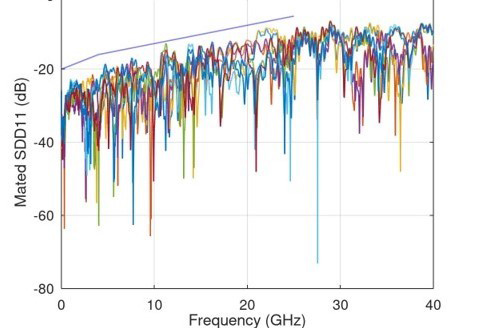

Mated Return Loss (no de-embedding)
