OCP3.0測試治具

Key features:

There are two separated boards: one CLB and one CBB.

  • Signal Integrity Board for OCP3.0 NIC Physical Layer Conformance.

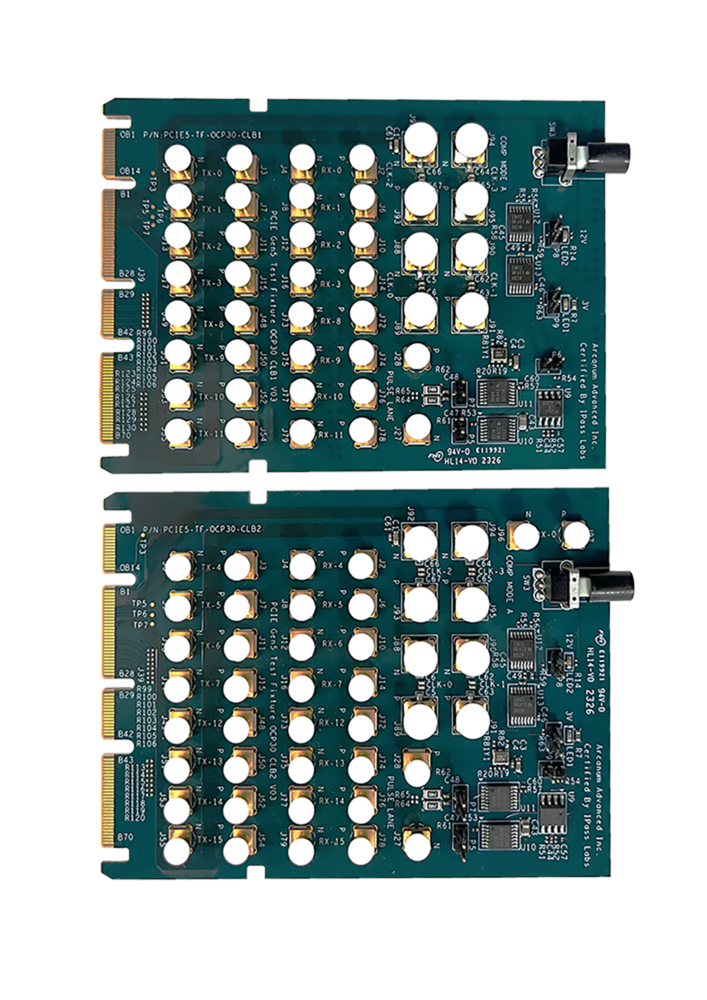

  • CLB supports PCIe5.0 (32GT/s) used for testing Transmitters
  • CLB needs additional Gen5 CEM (SIG-REV4) ISI Board for the testing.

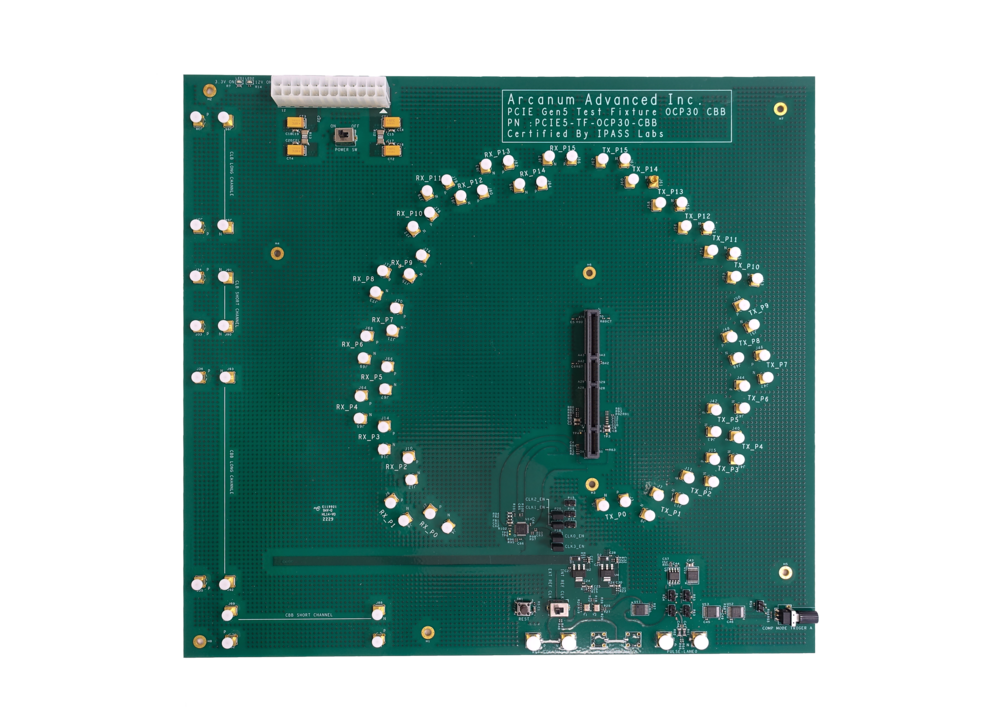

  • CBB supports PCIe5.0 (32GT/s) used for testing Receivers.
  • MMPX connectoris 100% compatiblewith PCI-SIG CEM ISI board.

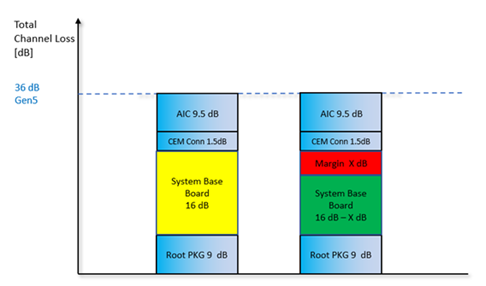

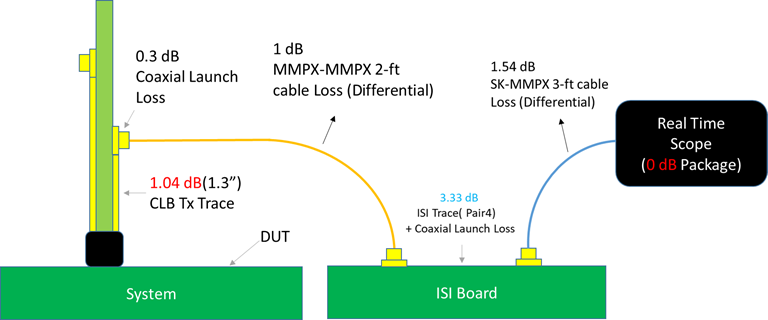

  • Real testing result of loss budget is 7.21 dB
