EDSFF(E1.S/E1.L)測試治具

Key features:

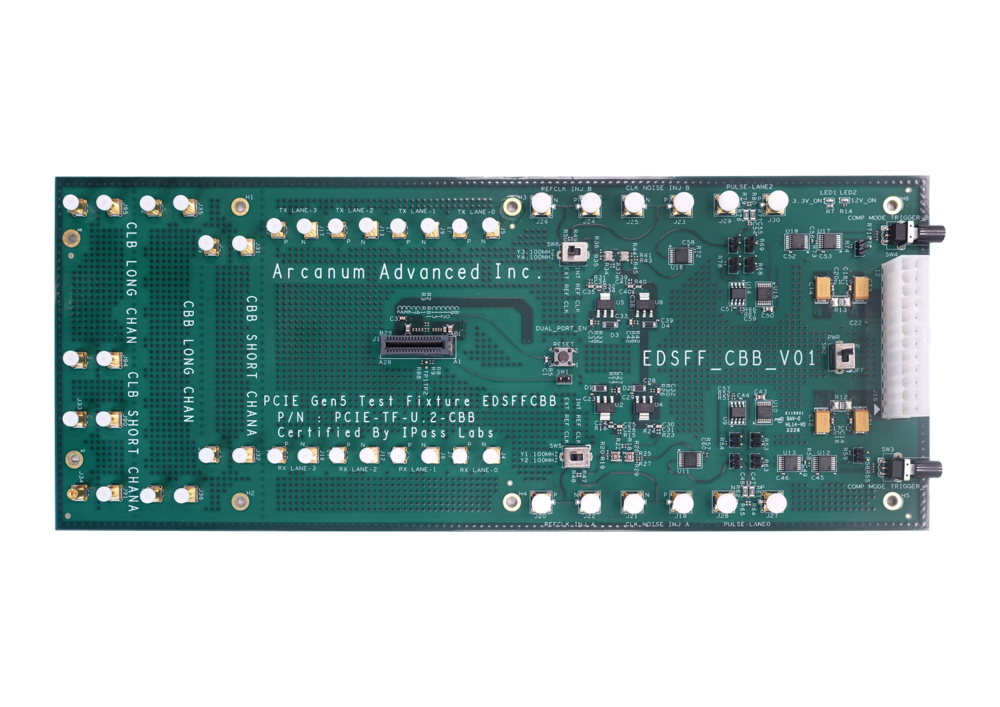

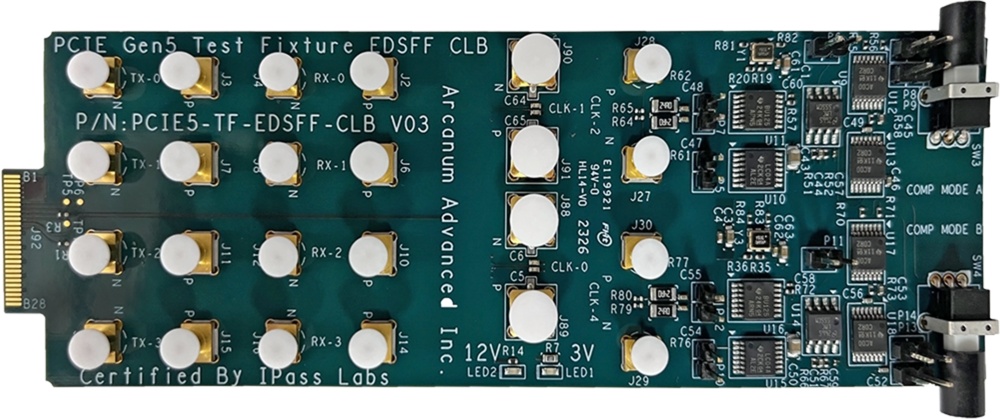

There are two separated boards: one CLB and one CBB.

  • Signal Integrity Board for EDSFF(SFF-TA-1006, SFF-TA-1007) Physical Layer Conformance.
  • CLB supports PCIe5.0 (32GT/s) used for testing Transmitters.
  • CLB needs additional Gen5 CEM (SIG-REV4) ISI Board for the testing.
  • CBB supports PCIe5.0 (32GT/s) used for testing Receivers.
  • MMPX connectoris 100% compatiblewith PCI-SIG CEM ISI board.

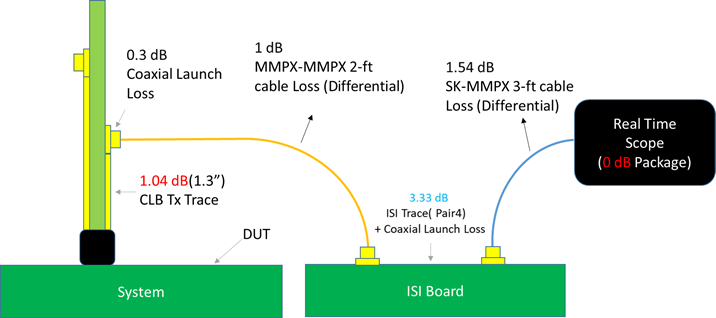

  • Real testing result of loss budget is 7.21 dB
