PCIe 6.0 Test Fixtures
Designed for PCIe signal compliance and validation tests, our test fixtures are strictly compliant with PCI-SIG specifications. We provide a complete product line for diverse form factors, such as SSDs, NICs, and enterprise storage systems.
Categories:

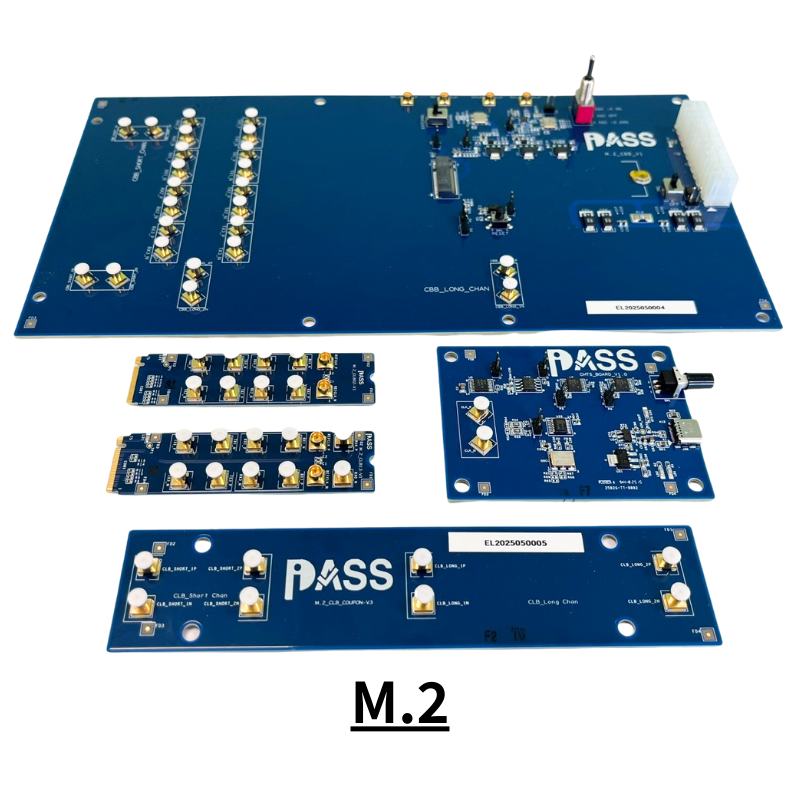

- M.2
- M.2-1a

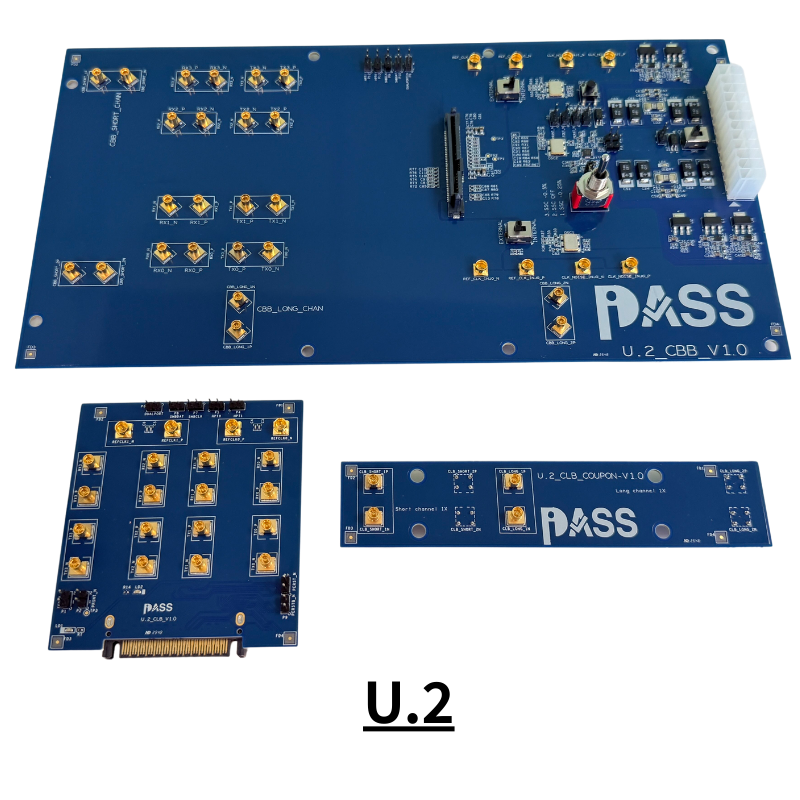

- U.2

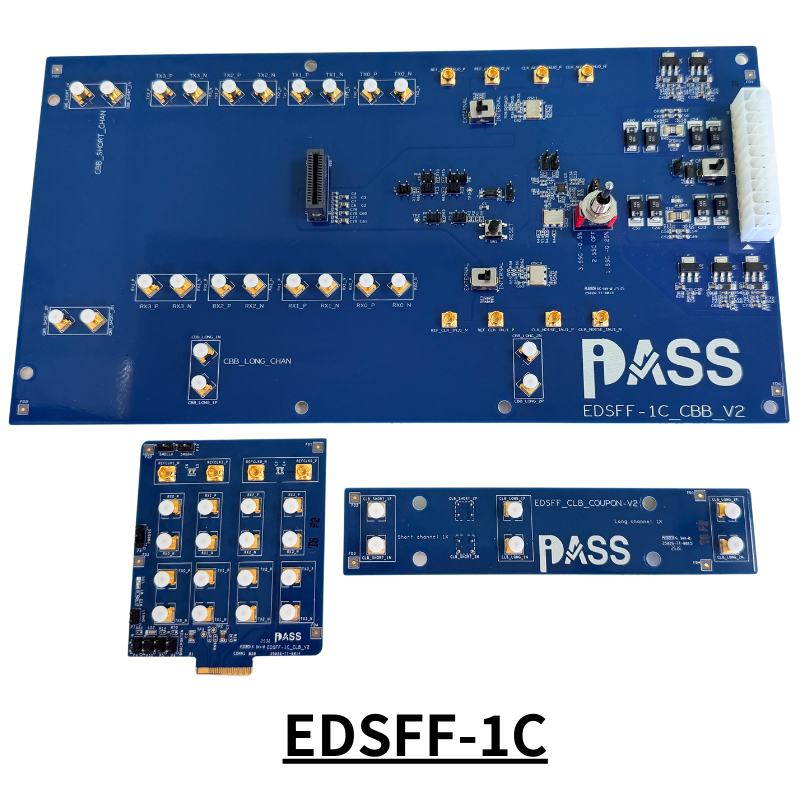

- EDSFF-1C

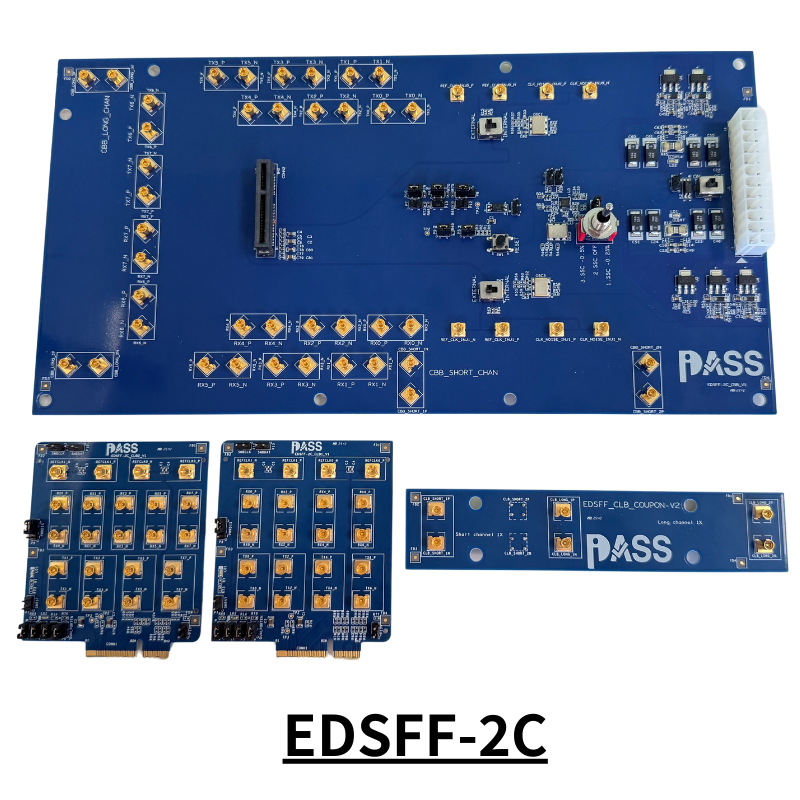

- EDSFF-2C
- EDSFF-4C

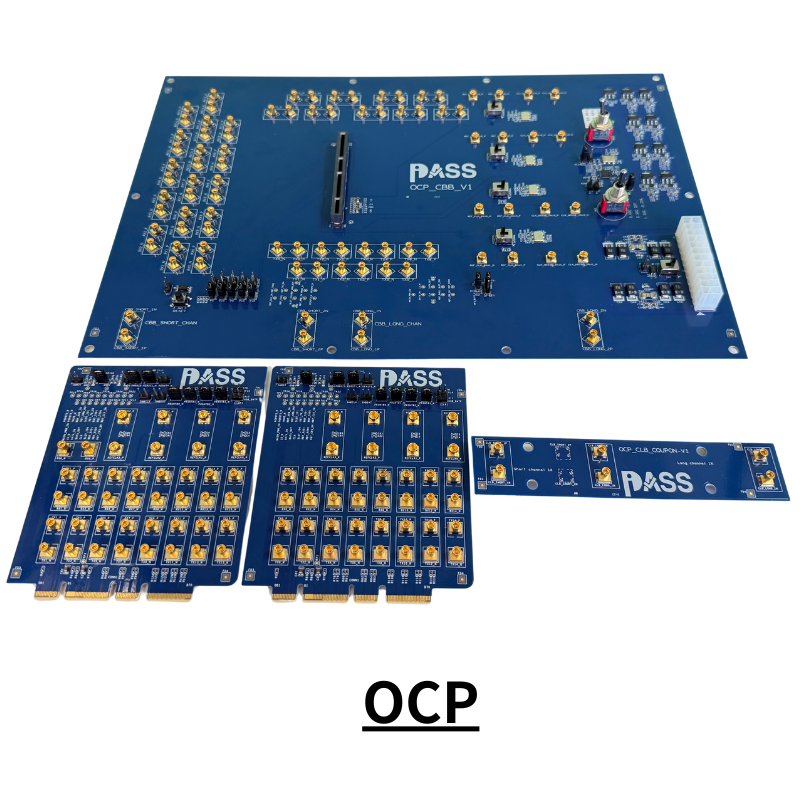

- OCP
Highlights:
- Under plug/unplug test
- Under temperature test
- Impedance control optimization
- Return loss optimization
Features:
- CLB supports PCIe 6.0 (64GT/s) used for System TX/RX testing .
- CLB needs additional PCI-SIG ISI Board or the scope's built-in package parameters to optimize signal analysis .
- CBB supports PCIe 6.0 (64GT/s) used for AIC TX/RX testing .
- MMPX connectors 100% compatible with PCI-SIG ISI board.
- Backward compatibility
Note:
For inquiries regarding M.2 B-Key, E-Key, or MCIO interface fixtures, please contact us for more details.
