Key Functions:

• Customizable channel loss profiles to emulate the effects of channel loss, for receiver tolerance testing, RX calibration and TX channel compensation.
• Data Rate:accurate performance evaluation of ÑÑÒGbps signaling.
• Emulates inter-symbol interference for precise signal integrity analysis in challenging conditions.
• The trace pair layout is optimized for both single-ended and differential impedance
• control.
• For for CÒM (Chip To Module)and CÒC (Chip to Chip) high speed electrical interfaces
• Precise control over ISI to stress testing DUT

Key Fixtures:

• Two product sets optional for various testing needs
• Flexible Configuration: Customizable channel loss and ISI profiles to tailor testing to specific requirements.
• Loss range Product set
  A : 1.6db – 28.5db, Product set
  B : 1db - 30db
• Connectors size 1.85mm

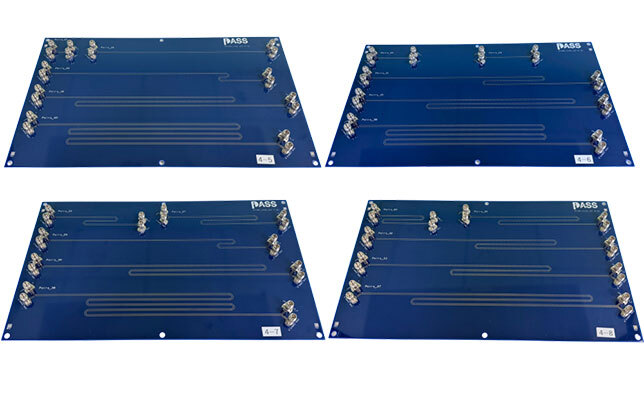

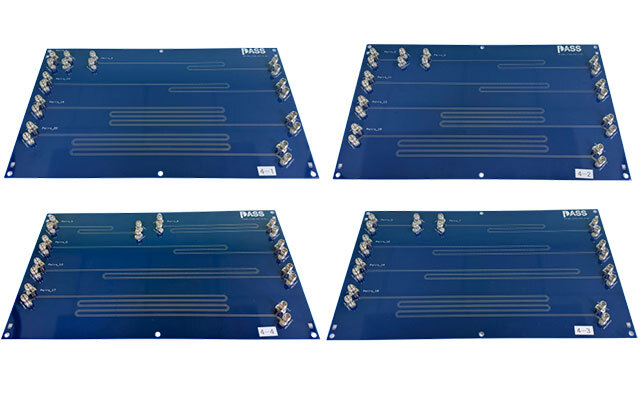

• Each product set has 20trace pairs w/4 boards
• Under Temperature test
• Material utilizes ultra low loss level
• Return loss optimization
• Including benches for easy operation
