Signal Integrity Validation
訊號測試驗證

SAS/SATA

串行ATA（SATA）和串行連接的SCSI（SAS）是數據存儲協議標準，其主要功能是在主機系統和大容量存儲設備 下一代存儲技術，如22.5Gb/s SAS 和12Gb/s SATA實現新的性能等級的存儲層次 結構可以釋放性能服務器和固態驅動器。

SAS/SATA測試介紹

SAS/SATA測試服務當前提供以下測試計劃。 這些測試會依據協會更新測試規範，以提高可信度並反映當前的規範。 如果您想了解更多信息或對SAS/SATA測試服務有疑問，請與我們聯繫。 SAS/SATA測試標準，請參照 SATA-IO官網與T10官網。


  • SAS/SATA前期測試（ SAS/SATA Pre-test）電氣訊號測試檢測
  • SAS/SATA除錯服務（ SAS/SATA Debug Service）
  • SAS/SATA諮詢服務（ SAS/SATA Consulting Service



SAS/SATA Tx RX
Gen1 ◎ ◎
Gen2 ◎ ◎
Gen3 ◎ ◎
SATA-OOB ◎ ◎
SAS Tx RX
Gen3 ◎ ◎
Gen4 ◎ ◎

SAS (Gen3 /4 )

The SAS testing service currently offers the following test plans. These documents are constantly being updated to improve readability and to reflect the current specifications. Please contact us if you would like more information or have questions about the SAS testing service.


RX

BERT (Bit Error Rate Tester)

  • Anritsu MP1900 PG/ED


The MP1900A Signal Quality Analyzer incorporates a Pulse Pattern Generator (PPG) module for generating the highest-quality, highest-amplitude signals in the industry, as well as an Error Detector (ED) module with the highest input sensitivity available

TX

RT-Scope (Real Time Oscilloscope)

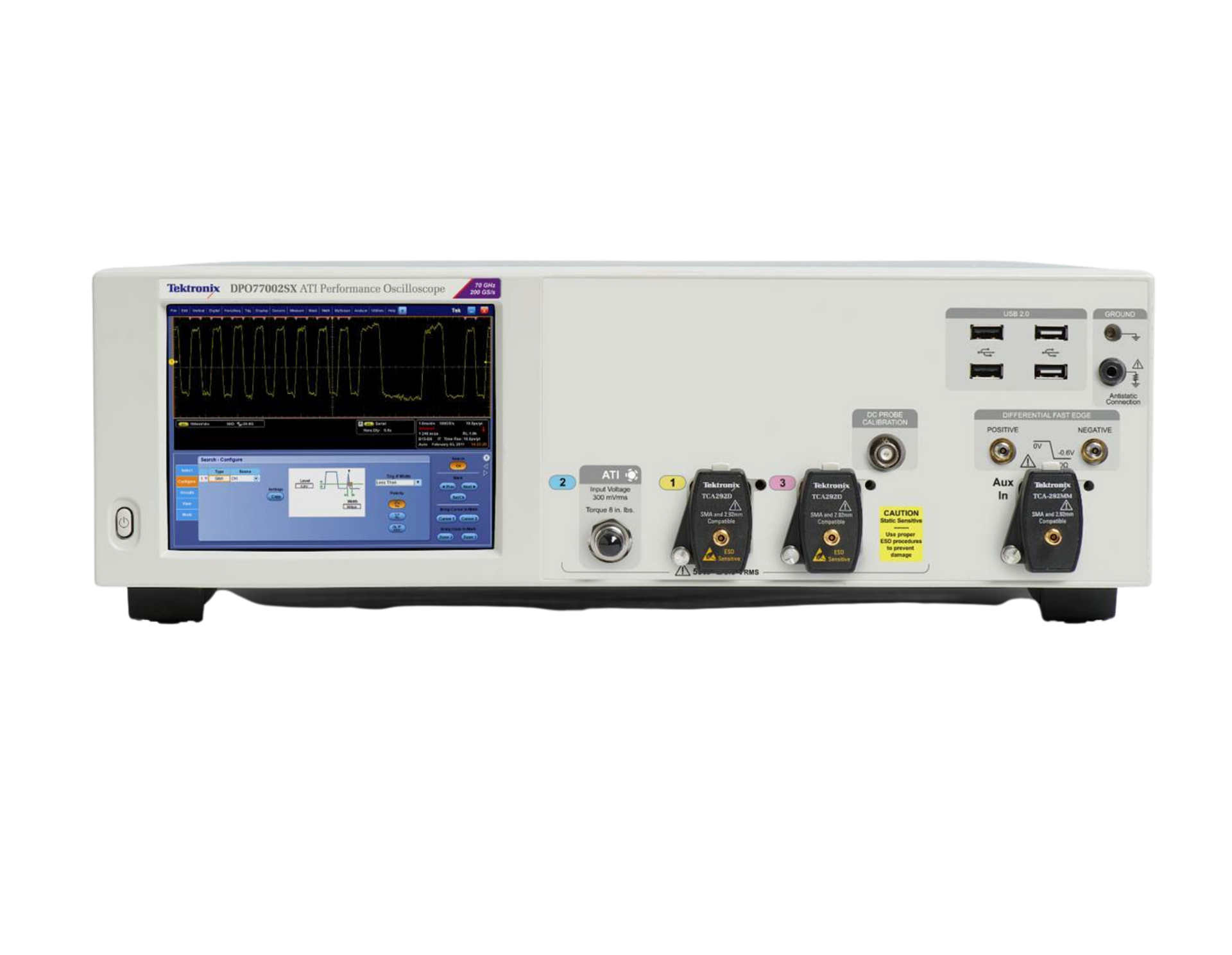

  • Tektronix DPO75002SX (Data Measurement)


DPO70000SX provides ultra-high bandwidth real time signal acquisition and analysis up to 70 GHz analog bandwidth. The patented Asynchronous Time Interleaving (ATI) architecture provides the lowest noise and highest fidelity for real time signal acquisition



SATA (Gen1/2/3 )

The SATA testing service currently offers the following test plans. These documents are constantly being updated to improve readability and to reflect the current specifications. Please contact us if you would like more information or have questions about the SATA testing service.

RX

BERT (Bit Error Rate Tester)

  • Tektronix BERTScope BSX240


The MP1900A Signal Quality Analyzer incorporates a Pulse Pattern Generator (PPG) module for generating the highest-quality, highest-amplitude signals in the industry, as well as an Error Detector (ED) module with the highest input sensitivity available.



TX

RT-Scope (Real Time Oscilloscope)

Tektronix DPO75002SX(Data Measurement)

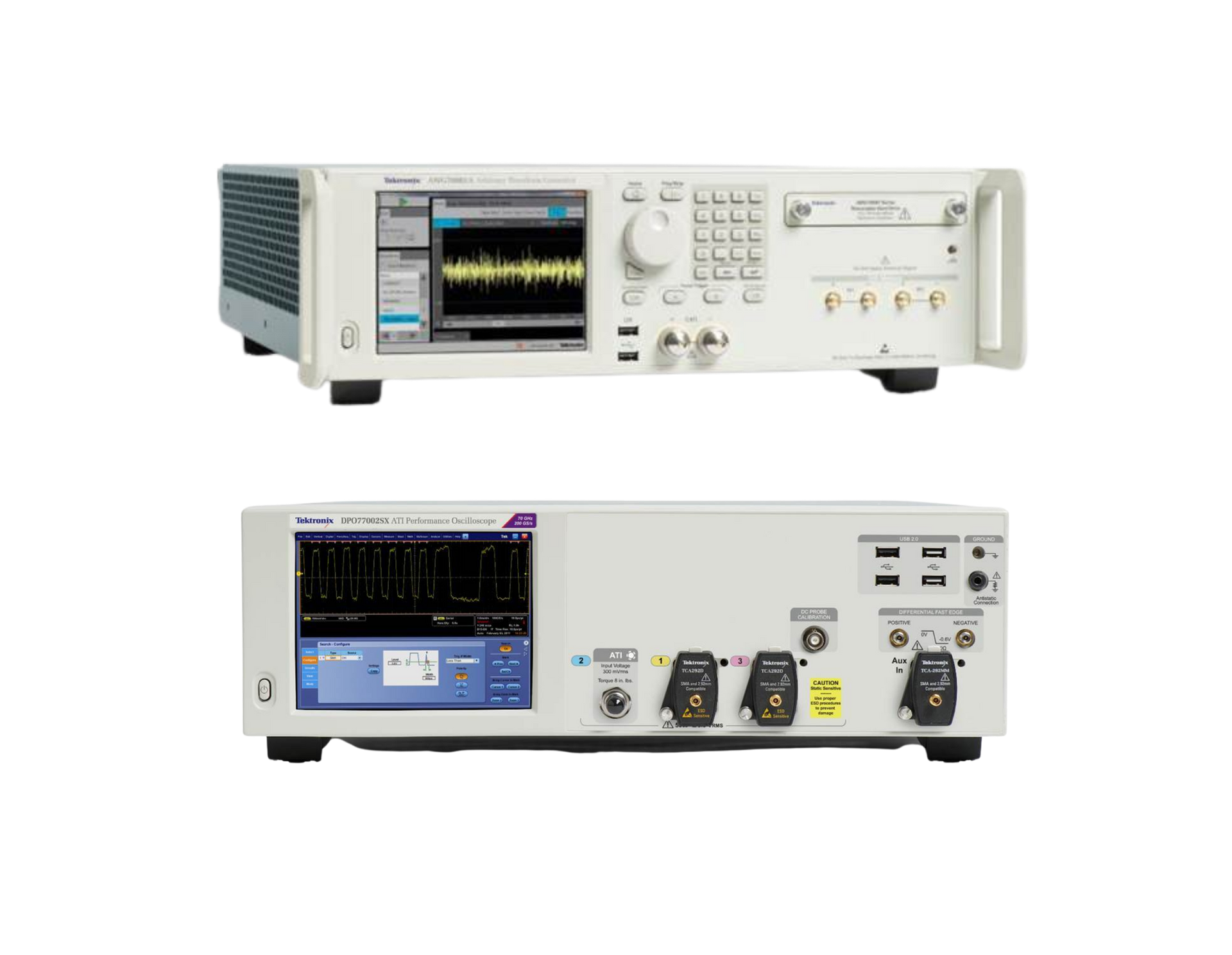

  • Tektronix AWG70000(OOB testing)


DPO70000SX provides ultra-high bandwidth real time signal acquisition and analysis up to 70 GHz analog bandwidth. The patented Asynchronous Time Interleaving (ATI) architecture provides the lowest noise and highest fidelity for real time signal acquisition
