Wilder Test Fixture

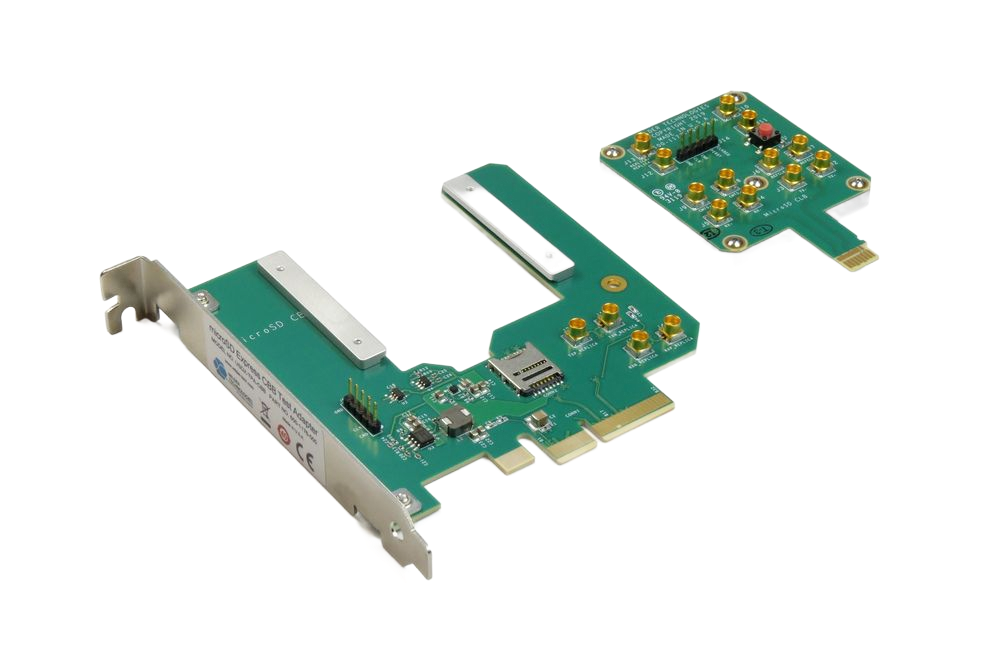

microSDX CLB and CBB Adapter

Capabilities

  • Supports advanced memory interface protocols of PCIe® and NVMe™
  • Minimal crosstalk, short trace lengths
  • Backward compatibility and interoperability
  • Supports SDHC, SDXC, and SDUC operation modes


General Description

The microSD Express Memory Card Test Adapter kits support PCIe® 8GT/s Interface Compliance Program testing for SD7.0 and SD7.10. Data collection via Lab Standard SSMP Test Cables and hard gold mating surface allow for high cycle count insertions and reliable performance.

USDX CLB Kit: 640-0957-000

USDX CBB Kit: 640-0956-000

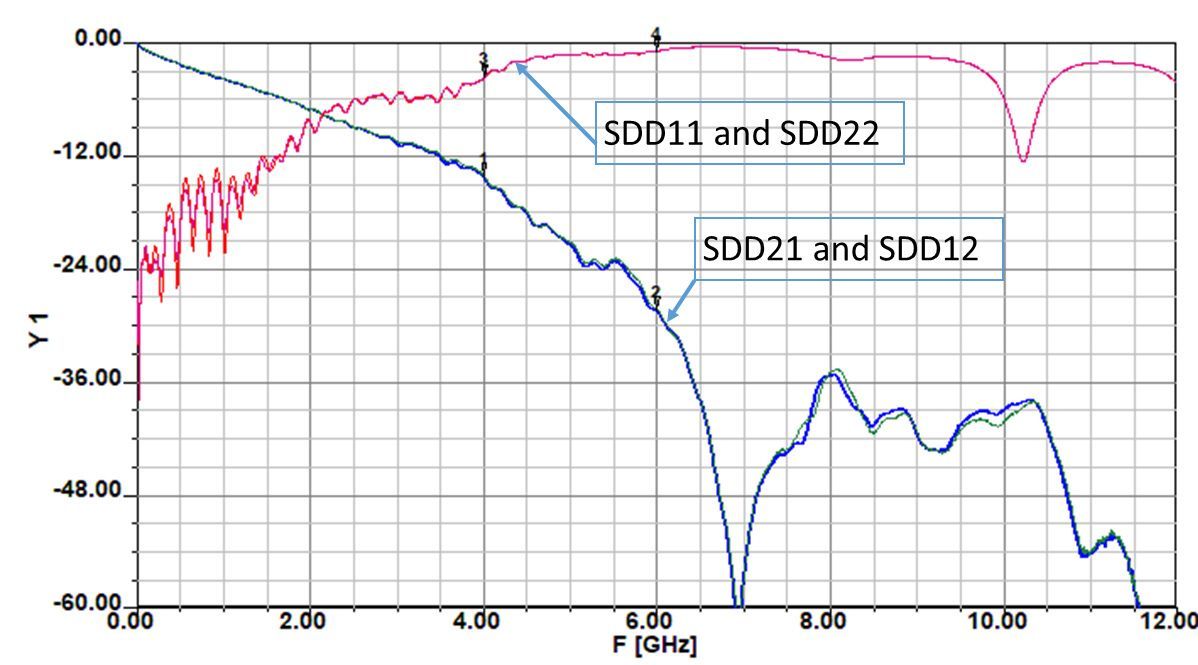

Mated Insertion Loss

 (no de-embedding)

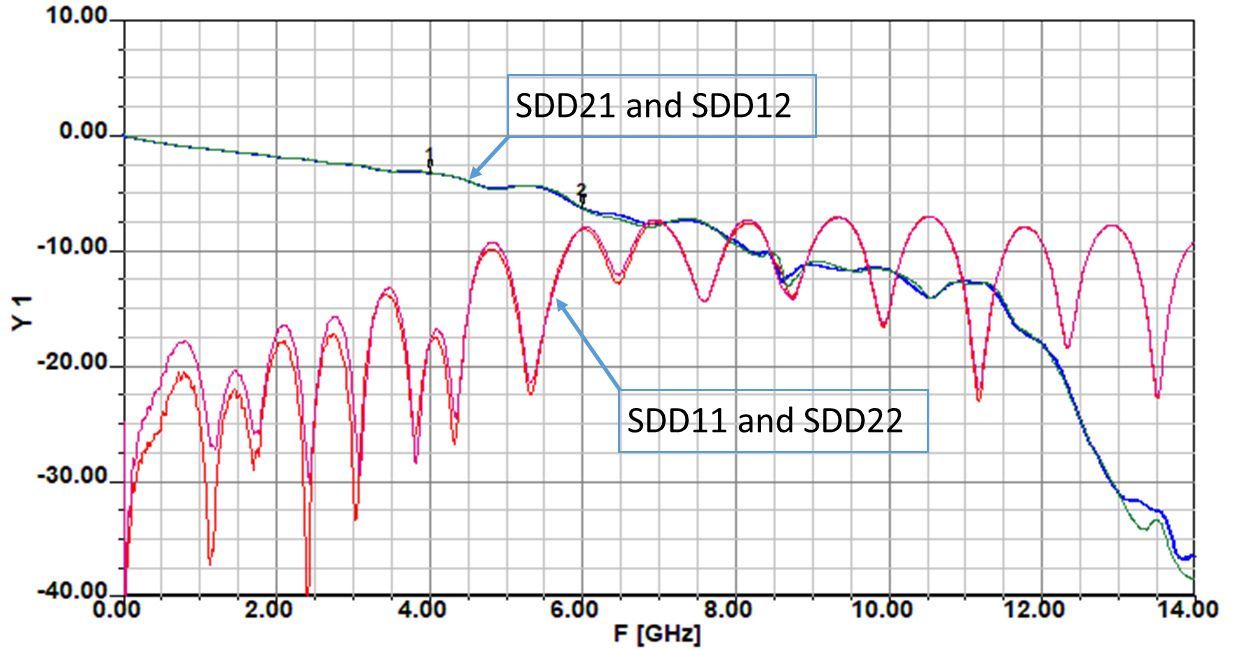

Mated Return Loss

 (no de-embedding)
