Wilder Test Fixture

SD Express Test Fixtures CLB and CBB Adapter

Capabilities

  • Supports advanced memory interface protocols of PCIe® and NVMe™
  • Minimal crosstalk, short trace lengths
  • Backward compatibility and interoperability
  • Supports SDHC, SDXC, and SDUC operation modes


General Description

The SD Express (Full Size) Memory Card Test Adapter kits support PCIe® 8GT/s Interface Compliance Program testing for SD7.0 and SD7.10. Data collection via Lab Standard SSMP Test Cables and hard gold mating surface allow for high cycle count insertions and reliable performance.


SDX CLB Kit: 640-0960-000

SDX CBB Kit: 640-0959-000

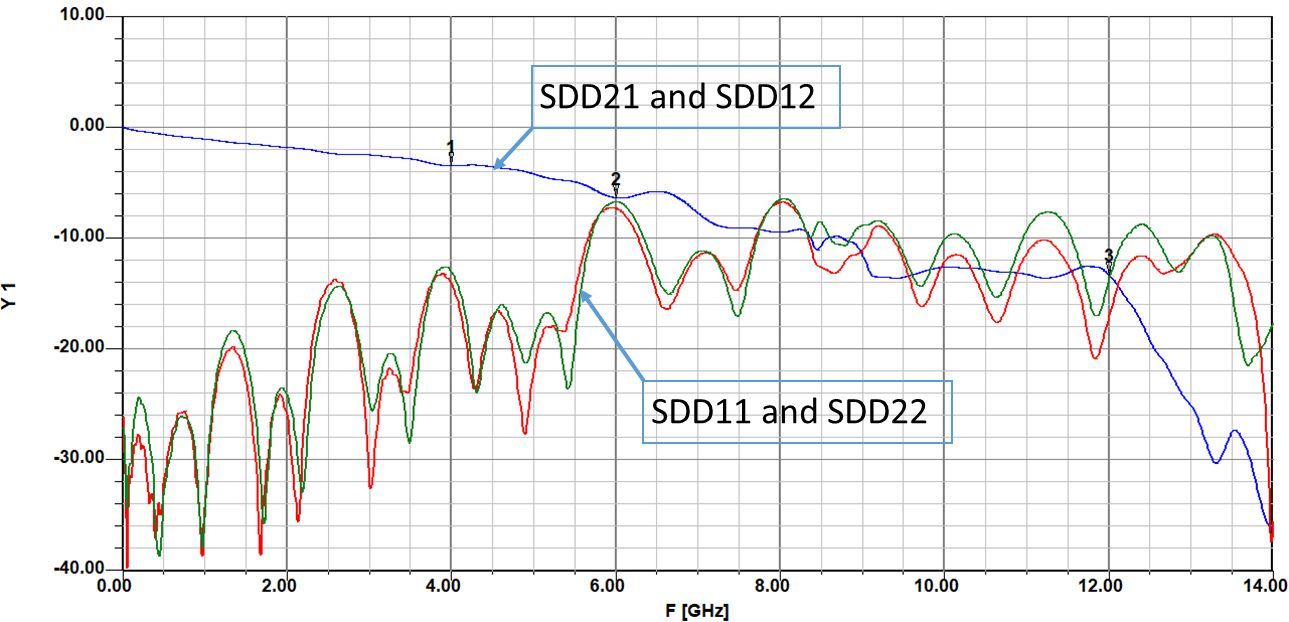

Mated Insertion Loss

 (no de-embedding)

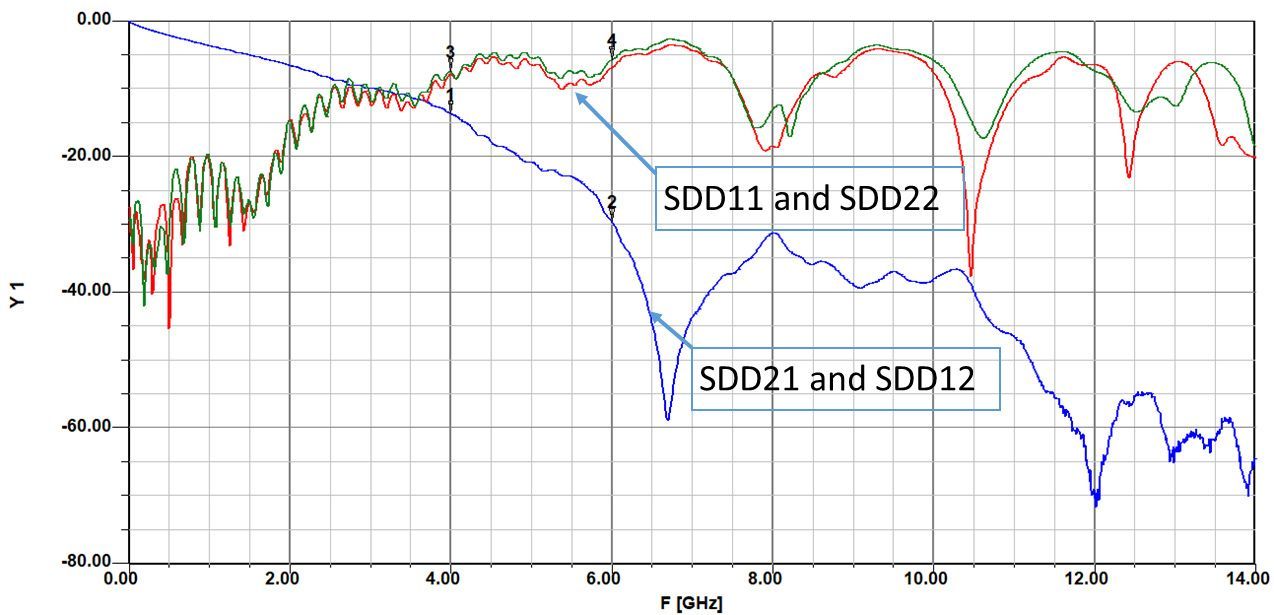

Mated Return Loss

 (no de-embedding)

iPasslabs is one of Wilder’s official global distributor.
