QSFP28 Test Adapters HCB & MCB
Capabilities
- Supports 25/100G testing
- Adheres to 802.3bj and OIF-CEI 3.1
- Allows side-by-side and stacked HCB connections
- Allows low-speed signal and power supply access
OSFP Test Adapters HCB & MCB
Capabilities
- Supports 400G PAM4
- Local 12V to 3.3V voltage regulator
- USB to I2C for easy access to module registers
- Adheres to 802.3bs/cd and OIF-CEI 4.0
QSFPDD Test Adapters HCB & MCB
Capabilities
- Supports 400G PAM4
- Two-insertion host testing
- User-selectable host configuration for Rx, Tx, Legacy, and DD testing
- Adheres to 802.3bs/cd and OIF-CEI 4.0
SFP28 Test Adapters HCB & MCB
Capabilities
- Supports 25/100G testing
- Adheres to 802.3by and OIF-CEI 3.1
- Allows side-by-side and stacked HCB connections
- Allows low-speed signal and power supply access
USB4 Test Fixtures With Microcontroller
Capabilities
- Supports 40 Gb/s data rate
- Supports basic power delivery testing
- Supports Ice Lake electrical testing
- Capable of sourcing up to 85 W
- New CIO-based test fixtures
- 85 Ohm design
microSDX CLB and CBB Adapter
Capabilities
- Supports advanced memory interface protocols of PCIe® and NVMe™
- Minimal crosstalk, short trace lengths
- Backward compatibility and interoperability
- Supports SDHC, SDXC, and SDUC operation mod
SD Express Test Fixtures CLB and CBB Adapter
Capabilities
- Supports advanced memory interface protocols of PCIe® and NVMe™
- Minimal crosstalk, short trace lengths
- Backward compatibility and interopera-bility
- Supports SDHC, SDXC, and SDUC oper-ation modes
HDMI® 2.1
Capabilities
- Up to 48 Gb/s data rate supported
- Certified for CAT3 cable testing
- GCTS Compliance Fixtures
- Supports FRL/EDID testing
- Supports eARC testing
DUTC TYPE-C
Capabilities
- TBT/DP (Alt Mode), USB Type-C™ (Native Mode)
- Supports LFPS Pinging for USB compliance test pattern cycling
- Built in DisplayPort Receiver to enable source DUT compliance patterns
- Adjustable AUX amplitude settings for AUX sensitivity testing
- Lane Flip Automation

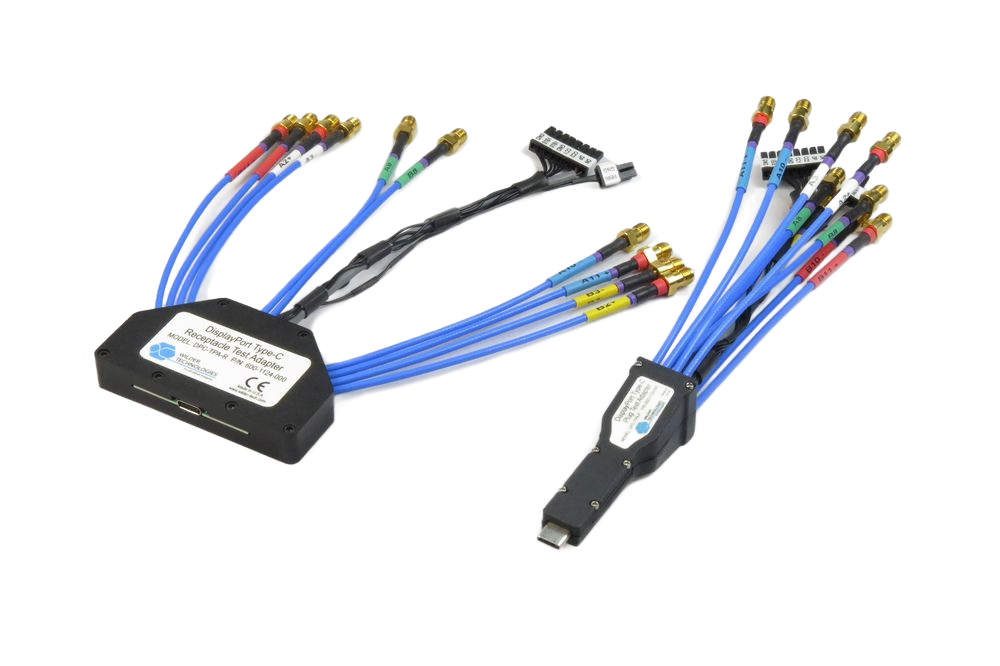

DisplayPort Type-C
Capabilities
- Supports DP 2.0, USB 3.2, and TBT Gen3 testing
- 22 GHz bandwidth (at –3dB)
- De-embeddable up to 30 GHz
- Allows transmitter and power delivery measurement access
